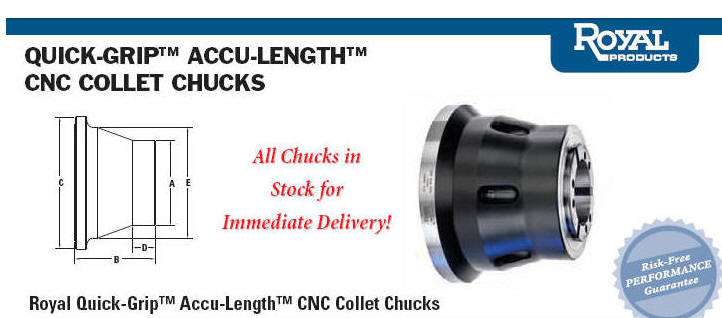

ROYAL QUICK-GRIP ACCU-LENGTH COLLET CHUCKS

Spindle
Type		 Collet
Type		 Capacity A
Overall
Length		 B
Nose
Diameter		 C
Nose
Length		 D
Body
Diameter		 E
Flange
Diameter		 Chuck
Weight
(lbs.)		 Max.
Drawbar
Force
(lbs.)		 Max
Clamping
Force
(lbs.)		 Max
RPM		 Part Number
A2-5 QG-42 1.625" 4.60 3.86 .980 5.70 6.45 15 7865 14160 6000 44055
A2-5 QG-42 1.625" 4.000 3.86 .980 5.70 6.45 13 7865 14160 6000 44051
A2-6 QG-42 1.625" 4.45 3.86 .980 6.20 7.25 17 7865 14160 6000 44053
A2-5 QG-65 2.625" 4.80 4.69 .87 6.45 7.25 19 10115 18205 6000 44065
A2-5 QG-65 2.625" 4.500 4.69 .87 6.45 7.25 18 10115 18205 6000 44061
A2-6 QG-65 2.625" 5.33 4.69 .87 6.45 7.25 23 10115 18205 6000 44067
A2-6 QG-65 2.625" 4.65 4.69 .87 6.45 7.25 18 10115 18205 6000 44063
A2-8 QG-65 2.625" 5.50 4.69 .87 8.00 9.45 37 10115 18205 6000 44068
140MM QG-65 2.625" 4.80 4.69 .87 6.45 7.45 25 10115 18205 6000 44069
A2-6 QG-80 3.250" 4.95 5.35 .87 7.45 7.45 28 10115 21590 5000 44071
A2-8 QG-80 3.250" 5.20 5.35 .87 8.00 9.45 31 11995 21590 5000 44073
