AutoGrip Quick-Change Jaw Chucks



These chucks are designed to minimize jaw changeover time while providing high repeatability and precision. They are also high quality—all chuck parts are hardened and precision ground. Along with speed, precision and quality Autogrip also focuses on manufacturing safety. This is why all chucks have a built-in safety feature, which ensures all jaws are in a proper position before starting the operation.

Power Chuck Options

  • 3 Jaw
  • Quick Change
  • Thru-Hole
  • All Chuck Parts Are Hardened And Precision Ground
  • High Rigidity And Clamping Accuracy
  • Built-In Safety System To Ensure That The Quick-Change Jaws Are Always In The Proper Position
  • 9”–12” Diameter
Two Easy Steps To Change jaws

First, turn the T-handle counter
Clockwise to release and move the Jaw into position.		 Second, turn the T-handle clockwise to
tighten and the jaw is locked securely in place.
Model   Plunger
Stroke		 Jaw Stroke
(Dia.)		 Chucking Dia.
Max.		 Chucking Dia.
Min.		 Max.
Draw bar
Pull
(kN
(k0gf)		 Max.
Clamping
Force Kn
(kfg)		 Max.
Speed
(rpm)		 I
kg:m2		 Chuck
Weight
(kg)		 Chuck Shipping
Weight
(kg)		 Matching
Cylinder		 max
3Q-08 A6 16 7.5 210 23 45.0 100.0 5000 .15 24.5 26.0 TK-1068 3.1
3Q-10 A8 19 8.8 254 41 60.0 135.5 4500 .41 44.0 46.0 TK-1287 2.8
3Q-12 A8 23 10.6 315 47 81.0 180.0 3500 .96 73.0 75.0 TK-1511 2.4

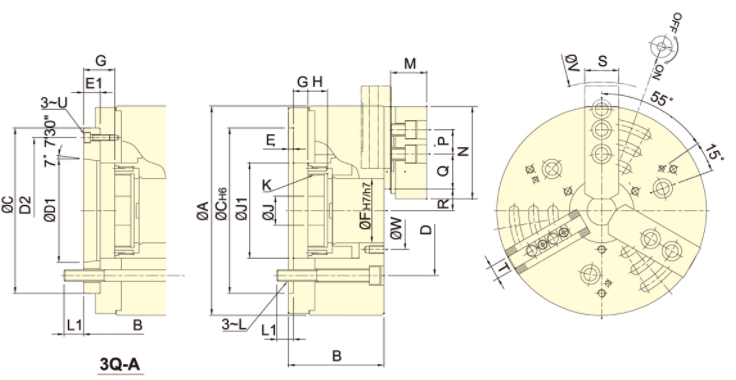

Chuck Specifications

Model   A B B C D D1 D2 E E1 F G
Max.		 G
Max.		 G
Min.		 G
MIN.		 H J
3Q-08 A6 215 98 110 170 133.4 106.38 150 5 17 66 14.5 32 -1.5 15.5 20 30
3Q-10 A8 254 119 132 220 171.4 138.72 190 5 18 81 8.5 26.5 -10.5 7.5 39 45
3Q-12 A8 315 133 145 220 171.4 139.72 190 5 18 106 8.5 26.5 -14.5 3.5 42 50

Model   J1 K L L1 L1 M N P Q R Max. R Min. S T U V W
3Q-08 A6 98 M75 X 2 M12 17 20 37 95 25 36 20.8-44.8 17.1-41.1 35 14 M6 264 80
3Q-10 A8 115 M90 X 2 M16 23 25 42 110 30 40.5 21.1-52.8 16.7-48.2 40 16 M8 312 100
3Q-12 A8 140 M115 X 2 M16 22 24 50 111 30 57 34.1-70.1 28.8-64.8 50 21 M8 360 130
